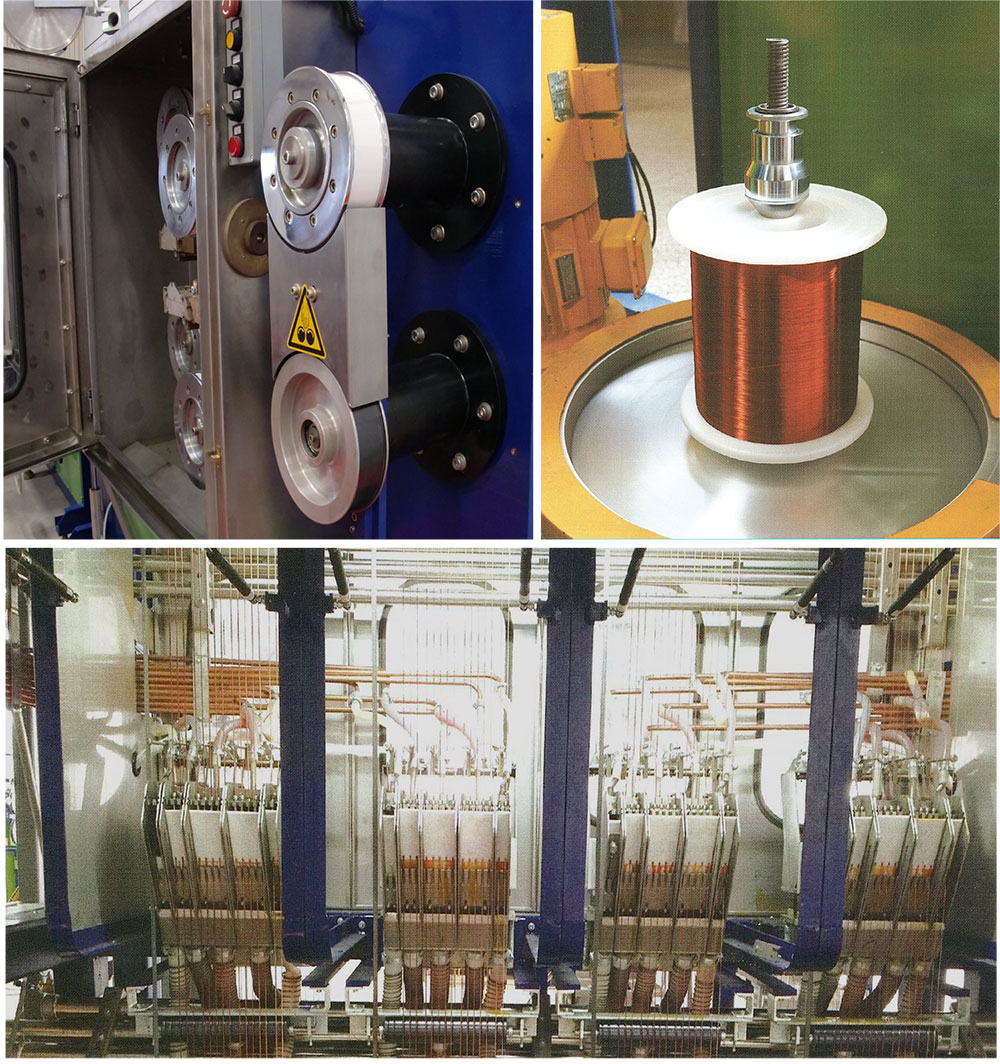

RQM type vertical middle speed enamelling machine with inline drawing
Series of enameling machine
RQM- L1/8-8/13 （φ1. 0-φ3. 0）
RQM- L1/8-8/13 （φ2.0 -φ5.0）
Main Technical Parameters
|
Type
|
RQL1/4-8/13 type vertical middle speed
|
|
Enamelling Machine with inline drawing
|
PU,PEI,PEI+PAI,PEI+PAL+SL,Cu,Al
|
|
Wire range
|
φ0.80-φ2.0mm
|
|
Production lines
|
8 lines
|
|
Inlet wire of drawing unit
|
φ2.60mm
|
|
Drawing passes
|
9
|
|
No.1-8 elongtation
|
1.25
|
|
No.9 elongtation
|
1.21
|
|
Coating passes
|
16 passes, die coating
|
|
Wire pitch
|
11-14mm
|
|
Mechanical speed
|
200m/min
|
|
Take-up bobbin
|
PT25-PT270
|
|
Take-up mode
|
Automatic bobbin changing system
|
Technical description of the product
|
Specs
|
DV
|
Line speed
|
Production
|
|
mm
|
PEI
|
m/min
|
kg/24h
|
|
φ0.8
|
50-80
|
62.5-100
|
400-640
|
|
φ1.5
|
50-80
|
33-53
|
750-1200
|
|
φ2.0
|
50-80
|
25-40
|
1000-1600
|
|
Note: it must use good quality cooper wire and enamel.
|
